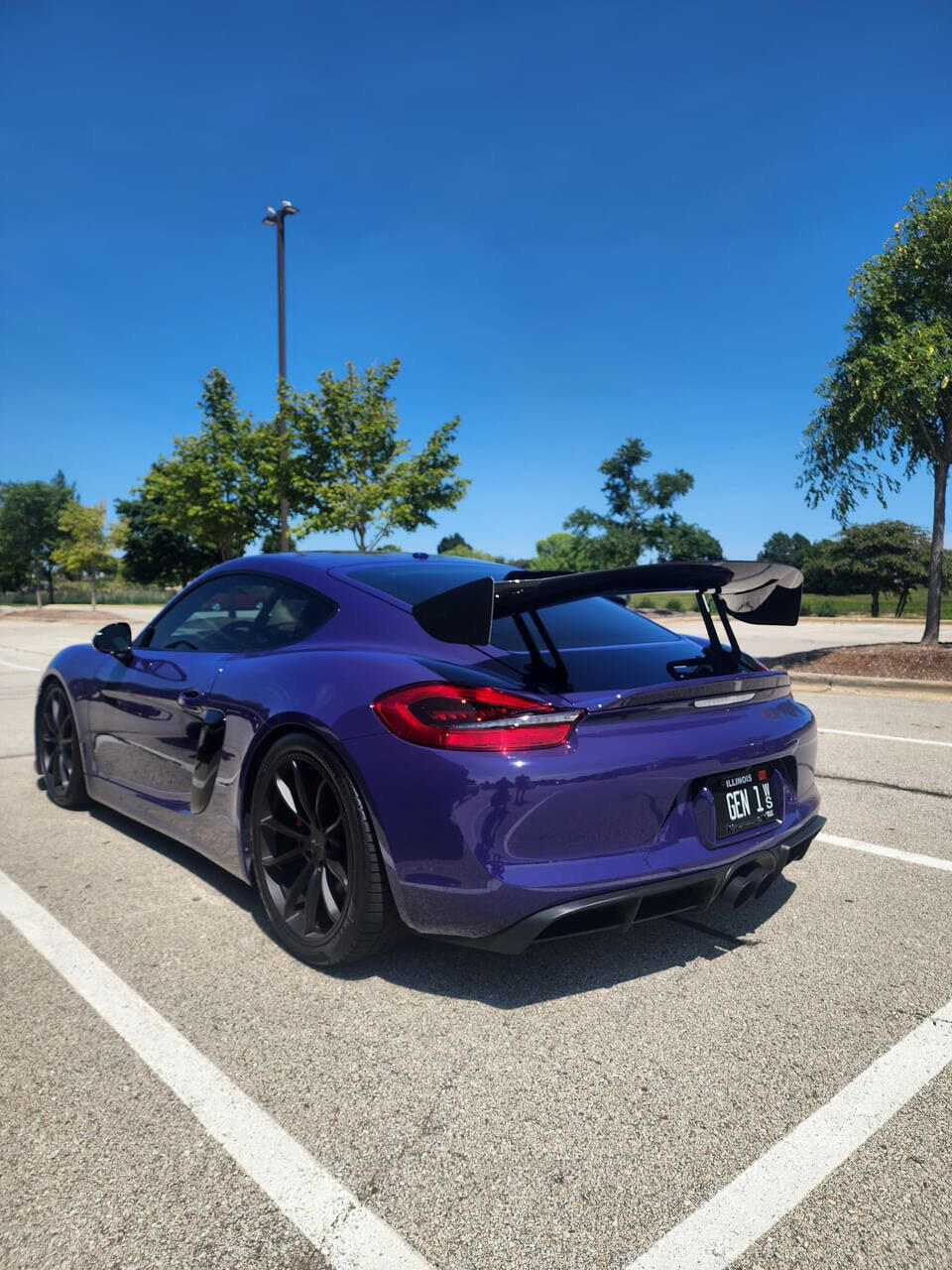

The DBJ 1450RS carbon fiber wing for the Cayman GT4 takes our 1450mm wings to the next level! Roughly the same footprint as the OEM wing but with a longer chord length, we've designed this wing with CFD to bring out maximum performance while maintaining an OEM-like package.
We made a couple of tweaks to further improve the performance on a wing of this size to bridge the gap to our largest offering. There are two new main design features to the 1450RS wing:
1) The swan neck mount
2) 3D airfoil design optimization
The 1450RS wing has a swan neck style design! Swan necks attach to the wing on the top surface and thus eliminate flow disruptions to the bottom surface of the wing. With a 100% smooth bottom, air flow stays attached longer in more situations avoiding premature flow separation. The means less drag and lower pressure for more surface area on the wing. The final result is more efficient downforce!
We've also added a 3D twisting design element to the wing profile to match the changing airflow as it comes over the roof of the car. This has been optimized to bring out more downforce than otherwise could be created with a fixed wing profile.
The positioning of the wing has been set to lie within the rear bumper footprint. This allows for traffic compliance in countries that do not allow overhanging wings and also allows you to compete with this wing in racing classes that limit the wing from extending over the bumper rear. Detailed wing risers raise the wing up about 3" from the OEM height and do not extend above the roof of the car. The wing can be set to 8 different angles of attack(1-8 degrees) allowing easy aerodynamic balance adjustments.
You can expect 60-200% increase in downforce over the stock wing dependent on the set angle of attack. The swan neck design allows higher angles of attack when compared to the traditional mounting design. This means that more downforce can be achieved at higher angles. When set to 5 degrees, this wing produces 106lbs of downforce at only 80mph while only adding 20lbs of drag. At 120mph this is 238lbs of downforce!
The wing is made from 3mm thick autoclaved carbon fiber ensuring the best quality of strength and stiffness per pound. Anodized in matte black, the aluminum wing risers feature chamfered edges and mount directly into the factory GT4 wing mount locations. The endplates are also constructed from 3mm thick carbon fiber and have counter sunk screws to give a clean flush look.
